• 28mm Ultra-Slim Aluminum Partition – Factory Direct

    28mm slim profile, 3.0mm thickness

    Acoustic rating up to 45dB

    Custom sizes, any RAL color

    Single/double glazing options

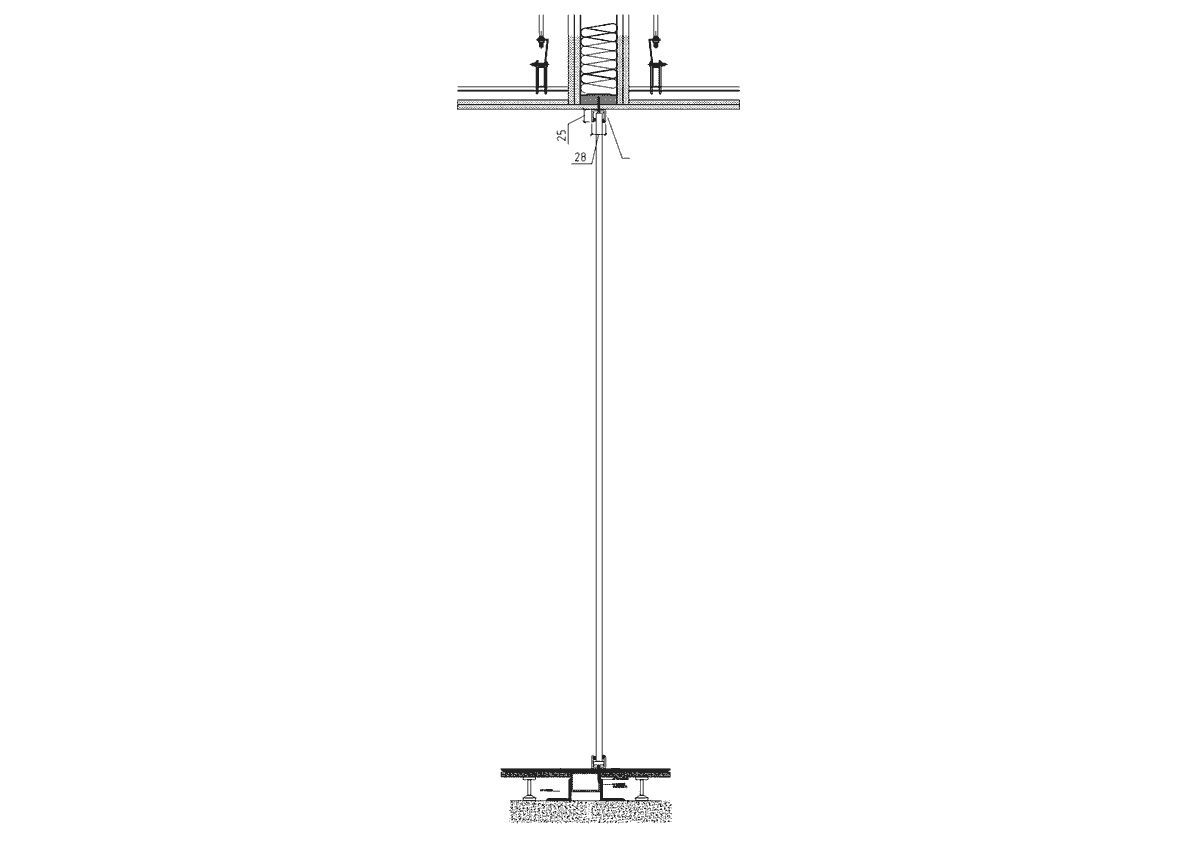

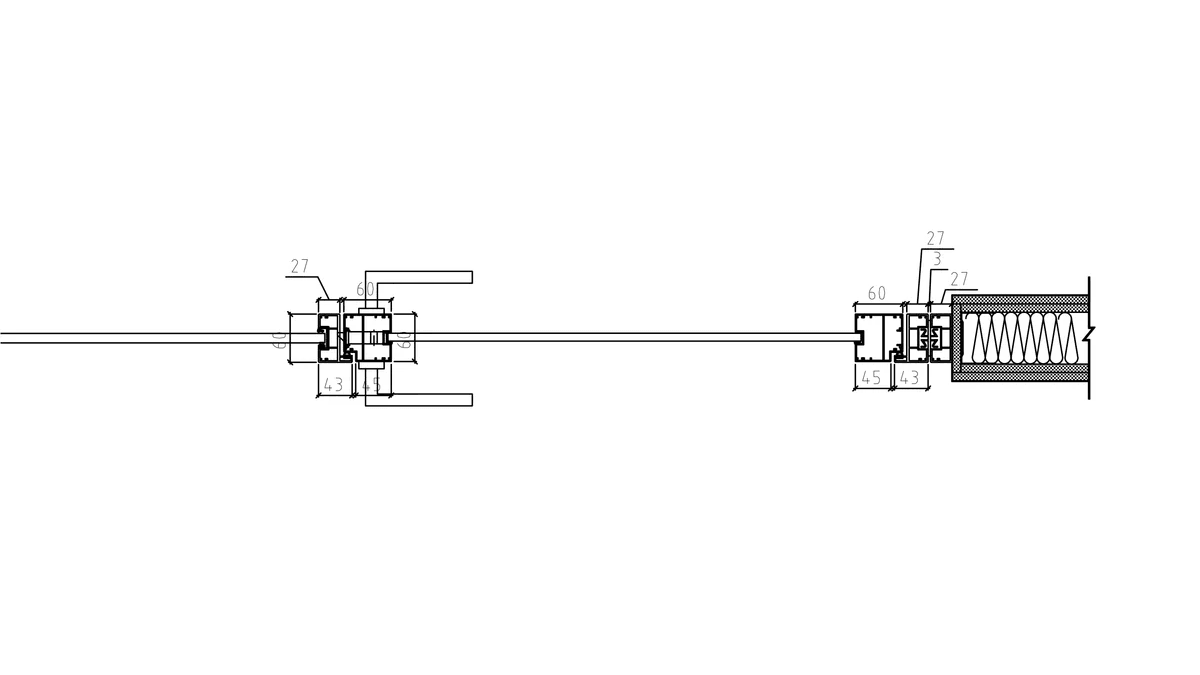

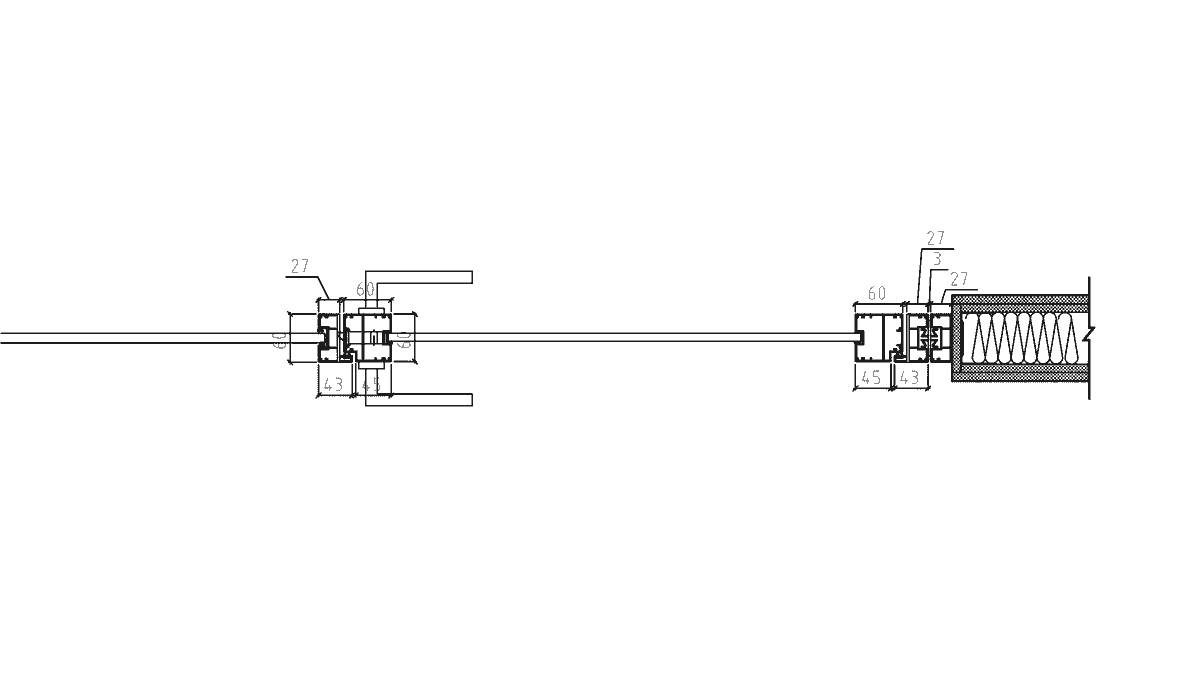

  • LC20 Section Drawing

    Section image

  • Technical Specifications

    System Name

    - LC20 Single Glazed Aluminum System

    Profile Thickness

    - 28 mm

    Aluminum Wall Thickness

    - 3.0 mm (GB6063)

    Glass Thickness

    - 8–15 mm

    Material

    - Extruded A00 aluminum ingot, reinforced with internal steel keel

    Surface Finish

    - Electrostatic powder coating

    Standard Colors

    - Black, silver, white, gray (custom RAL available)

    Partition Type

    - Full-height panoramic

  • Key Advantages

    • Ultra-slim profile

    : 28mm narrow frame maximizes glass visibility, creating bright and open spaces.

    • Cost-effective choice

    : Achieve high-end minimalist design even in budget-sensitive projects.

    • Flexible configuration

    : Supports single/double glazing and various glass types (clear, frosted, wired, etc.).

    • Quick installation

    : Standardized profiles enable efficient construction and shorter project timelines.
