• J108 Heavy-Duty Acoustic Partition

    108mm Robust Frame for Luxury Projects

    The LC108 features a 108mm heavy-duty frame with 2.0mm wall thickness, delivering superior sound insulation (up to 45dB) and a premium feel. Designed for luxury hotels, executive suites, and high-end venues where privacy and prestige matter.

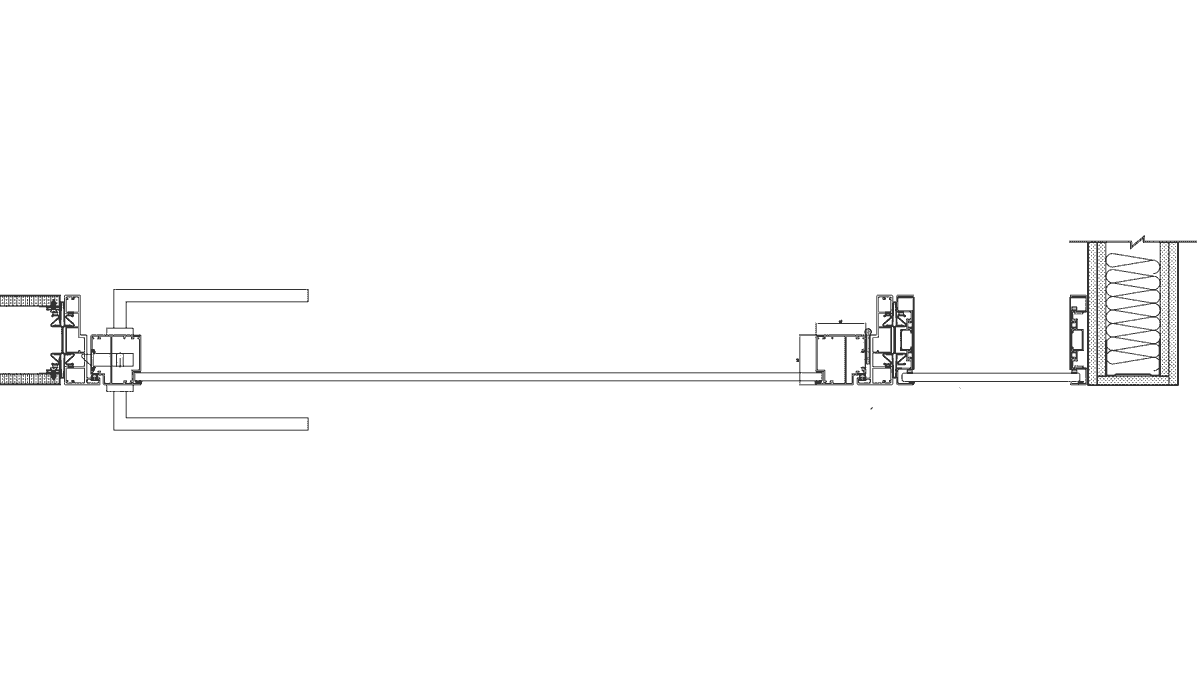

  • LC108 Section Drawing

    Section image

  • Technical Specifications

    System Name

    - LC108 Single Glazed Aluminum System

    Profile Thickness

    - 108 mm

    Aluminum Wall Thickness

    - 2.0 mm (GB6063)

    Glass Thickness

    - 8–12 mm

    MaterialExtruded

    - A00 aluminum ingot, reinforced with internal steel keel

    Surface Finish

    - Electrostatic powder coating

    Standard Colors

    - Black, silver, white, gray (custom RAL available)

    Partition Type

    - Full-height panoramic

  • Key Advantages

    • Superior sound insulation

    : Achieves up to 45dB acoustic rating, ensuring privacy in quiet spaces.

    • Robust and reliable

    : 108mm heavy-duty profile provides exceptional structural strength for large spans.

    • Premium positioning

    : Frequently specified for 5-star hotels, executive offices, and high-end venues.

    • Customizable options

    : Compatible with laminated, fire-rated, or smart glass for special requirements.
